Stream: bugs

Topic: โœ” Struct memory partially zeroed between Roc and Rust


view this post on Zulip jan kili (Dec 13 2024 at 20:02):

JanCVanB said:

... Tomorrow I'll revisit the memory zeroing bug...

I've created a minimal bug reproduction (using just a few additions to basic-cli@main) of this confusing obstacle I've been hitting in my roc-on project (before and after switching to purity inference). I get this output, which demonstrates the zeroing I'm also seeing with all tag union discriminants (seemingly because discriminant is the second field in the union).

jan@framey:~/_code/JanCVanB/basic-cli$ roc version
roc nightly pre-release, built from commit 7495495 on Do 12 Dez 2024 09:43:52 UTC
jan@framey:~/_code/JanCVanB/basic-cli$ ./bug_repro___run.sh
+ '[' -z '' ']'
+ echo 'Warning: ROC environment variable is not set... I'\''ll try with just '\''roc'\''.'
Warning: ROC environment variable is not set... I'll try with just 'roc'.
+ ROC=roc
+ roc build --lib ./platform/libapp.roc
0 errors and 0 warnings found in 143 ms while successfully building:

    ./platform/libapp
+ cargo build --release
    Finished `release` profile [optimized] target(s) in 0.05s
+ '[' -n '' ']'
+ cp target/release/libhost.a ./platform/libhost.a
+ roc build --linker=legacy build.roc
0 errors and 0 warnings found in 287 ms while successfully building:

    build
๐Ÿฆ… happy: {bar: 22, baz: 33, foo: 11}
๐Ÿฆ€ sad: ZeroedStruct { bar: 22, baz: 0, foo: 0 }
jan@framey:~/_code/JanCVanB/basic-cli$

I'm happy to create a github issue for this, but I'm unclear which repo is responsible - maybe a roc-lang/roc/crates/glue/src/RustGlue.roc bug?

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 20:32):

Yeah, known c abi bugs

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 20:33):

Rust is expecting {bar: 22, baz: 33, foo: 11} to be passed in a single register.

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 20:33):

Cause it is 3 U8s

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 20:33):

We are probably passing it in 3 different registers

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 20:34):

Thus only the first value is correct (cause it is in the first register)

view this post on Zulip jan kili (Dec 13 2024 at 20:59):

Oh, okay! I'm so glad this is known and clear to you.

view this post on Zulip jan kili (Dec 13 2024 at 21:00):

Can I debug it by telling Rust to expect multiple registers? (no idea where to start, but happy to look up things)

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 21:01):

If you make rust recieve 3 u8s instead of a struct, I think that should work

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 21:02):

This is a major issue we have with small types. We really need to revamp how we generate c-abi and deal with all the various cases.

view this post on Zulip jan kili (Dec 13 2024 at 21:03):

Do you mean [u8]? Is there a better one-to-one container? Since I have dozens of nested struct types with lots of U8s, I'm looking for structure.

view this post on Zulip jan kili (Dec 13 2024 at 21:05):

Or would ballooning to U32/64 minimum sizes and then tossing head bits magically fix it?

view this post on Zulip jan kili (Dec 13 2024 at 21:07):

I infer that this approach would be a PR to RustGlue.roc to fix the representations it chooses.

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 21:10):

For this specific case: https://godbolt.org/z/xj87ajszh

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 21:11):

If all of your structs/tags were big enough to avoid fitting in two register, it would probably generate correct calls that match what rust expects.

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 21:12):

Or would ballooning to U32/64 minimum sizes and then tossing head bits magically fix it?

So yeah, this would probably would in most cases.

view this post on Zulip jan kili (Dec 13 2024 at 21:16):

Ballooning results:

U8s

๐Ÿฆ… happy: {bar: 22, baz: 33, foo: 11, qux1: 44, qux2: 55, qux3: 66}
๐Ÿฆ€ sad: ZeroedStruct { bar: 22, baz: 0, foo: 0, qux1: 0, qux2: 0, qux3: 0 }

U16s

๐Ÿฆ… happy: {bar: 22, baz: 33, foo: 11, qux1: 44, qux2: 55, qux3: 66}
๐Ÿฆ€ sad: ZeroedStruct { bar: 22, baz: 1951, foo: 32766, qux1: 0, qux2: 33, qux3: 0 }

U32s

๐Ÿฆ… happy: {bar: 22, baz: 33, foo: 11, qux1: 44, qux2: 55, qux3: 66}
๐Ÿฆ€ sad: ZeroedStruct { bar: 66, baz: 32766, foo: 3966136302, qux1: 22066, qux2: 1945484424, qux3: 32766 }

U64s

๐Ÿฆ… happy: {bar: 22, baz: 33, foo: 11, qux1: 44, qux2: 55, qux3: 66}
๐Ÿฆ€ sad: ZeroedStruct { bar: 140724510355272, baz: 94609053062050, foo: 140724510355320, qux1: 8, qux2: 139842509156127, qux3: 94609075901416 }

:blushing:

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 21:19):

ballooned on both the roc and rust side?

view this post on Zulip jan kili (Dec 13 2024 at 21:21):

yeah both, via naive regenerated glue

view this post on Zulip Luke Boswell (Dec 13 2024 at 21:25):

My "workaround" is to make the type larger by adding in U64's or something until it gets passed by pointer, and then just ignore the unused parts.

view this post on Zulip jan kili (Dec 13 2024 at 21:25):

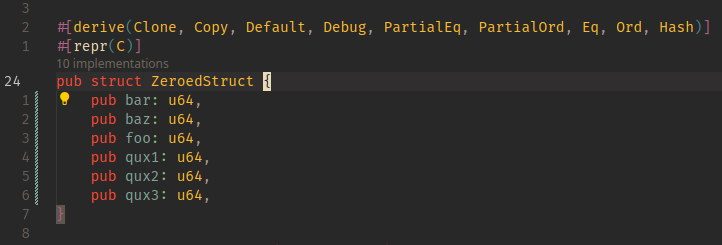

Should I add a pointer dereference to this sextet of U64s? (And is 6 "enough" to trigger that passing by pointer?)

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 21:26):

Luke Boswell said:

My "workaround" is to make the type larger by adding in U64's or something until it gets passed by pointer, and then just ignore the unused parts.

That's probably an easier general workaround

view this post on Zulip jan kili (Dec 13 2024 at 21:27):

Sneaky pointer confirmed: I wonder if it's already passing by pointer:

Re-running U64s

๐Ÿฆ… happy: {bar: 22, baz: 33, foo: 11, qux1: 44, qux2: 55, qux3: 66}
๐Ÿฆ€ sad: ZeroedStruct { bar: 140732166601912, baz: 93831138048418, foo: 140732166601960, qux1: 8, qux2: 140691827044127, qux3: 93831156052968 }

and again

๐Ÿฆ… happy: {bar: 22, baz: 33, foo: 11, qux1: 44, qux2: 55, qux3: 66}
๐Ÿฆ€ sad: ZeroedStruct { bar: 140721497110504, baz: 94174084974690, foo: 140721497110552, qux1: 8, qux2: 139823797833503, qux3: 94174114378728 }

view this post on Zulip jan kili (Dec 13 2024 at 21:27):

or just unwiped ram noise, I suppose

view this post on Zulip jan kili (Dec 13 2024 at 21:30):

Does this mean that glue code always requires nontrivial handwriting after generation? (when numbers are involved)

view this post on Zulip jan kili (Dec 13 2024 at 21:32):

Luke, do you have an existing example of that pointer+ignore workaround that I can adapt? Like from roc-ray?

view this post on Zulip Luke Boswell (Dec 13 2024 at 21:35):

Sure, here's how I get UUID's across to the host in roc-ray

RawUUID : {
    upper : U64,
    lower : U64,
    zzz1 : U64,
    zzz2 : U64,
    zzz3 : U64,
}

view this post on Zulip Luke Boswell (Dec 13 2024 at 21:36):

And the glue for that

#[derive(Clone, Copy, Default, Debug, PartialEq, PartialOrd, Eq, Ord, Hash)]
#[repr(C)]
pub struct PeerUUID {
    pub lower: u64,
    pub upper: u64,
    pub zzz1: u64,
    pub zzz2: u64,
    pub zzz3: u64,
}

roc_refcounted_noop_impl!(PeerUUID);

impl From<matchbox_socket::PeerId> for PeerUUID {
    fn from(peer_id: matchbox_socket::PeerId) -> PeerUUID {
        let (upper, lower) = peer_id.0.as_u64_pair();
        PeerUUID {
            lower,
            upper,
            zzz1: 0,
            zzz2: 0,
            zzz3: 0,
        }
    }
}

impl From<&PeerUUID> for uuid::Uuid {
    fn from(roc_uuid: &PeerUUID) -> uuid::Uuid {
        uuid::Uuid::from_u64_pair(roc_uuid.upper, roc_uuid.lower)
    }
}

impl From<&PeerUUID> for PeerId {
    fn from(roc_uuid: &PeerUUID) -> matchbox_socket::PeerId {
        let uuid = uuid::Uuid::from_u64_pair(roc_uuid.upper, roc_uuid.lower);
        matchbox_socket::PeerId::from(uuid)
    }
}

view this post on Zulip jan kili (Dec 13 2024 at 21:38):

Gotcha, so stuff in fluff then ignore it as much as possible!

view this post on Zulip jan kili (Dec 13 2024 at 21:40):

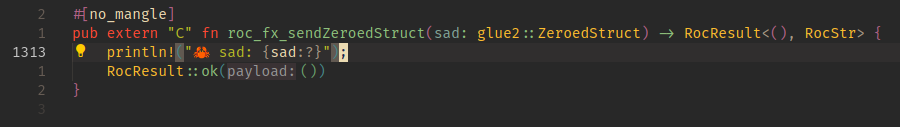

What are the implications/ripples of passing by pointer? Would my

pub extern "C" fn roc_fx_sendZeroedStruct(sad: glue2::ZeroedStruct) -> RocResult<(), RocStr> {

change to

pub extern "C" fn roc_fx_sendZeroedStruct(sad: &glue2::ZeroedStruct) -> RocResult<(), RocStr> {

?

view this post on Zulip Luke Boswell (Dec 13 2024 at 21:40):

Yeah, I'm hoping with the ROAR stuff we've been discussing, that would clean all the C ABI issues up.

view this post on Zulip jan kili (Dec 13 2024 at 21:40):

...otherwise I don't see why the ballooning above wouldn't be working already.

view this post on Zulip Luke Boswell (Dec 13 2024 at 21:41):

JanCVanB said:

What are the implications/ripples of passing by pointer? Would my

pub extern "C" fn roc_fx_sendZeroedStruct(sad: glue2::ZeroedStruct) -> RocResult<(), RocStr> {

change to

pub extern "C" fn roc_fx_sendZeroedStruct(sad: &glue2::ZeroedStruct) -> RocResult<(), RocStr> {

?

Yeah I think so.. here's an example getting PeerUUID from roc

extern "C" fn roc_fx_sendToPeer(bytes: &RocList<u8>, peer: &glue::PeerUUID) {

view this post on Zulip jan kili (Dec 13 2024 at 21:42):

Just adding the &:

๐Ÿฆ… happy: {bar: 22, baz: 33, foo: 11, qux1: 44, qux2: 55, qux3: 66}
๐Ÿฆ€ sad: ZeroedStruct { bar: 22, baz: 33, foo: 11, qux1: 44, qux2: 55, qux3: 66 }

:woman_facepalming: I should be dancing right now but I'm not.

view this post on Zulip Luke Boswell (Dec 13 2024 at 21:43):

Congratulations, you've basically found all the known issues with platform development :smiley:

view this post on Zulip jan kili (Dec 13 2024 at 21:43):

This is fantastic news. For now I don't care that my programs will consume 100x memory.

view this post on Zulip jan kili (Dec 13 2024 at 21:44):

:point_up: Best case scenario is that I'm quoting this comment in a month.

view this post on Zulip jan kili (Dec 13 2024 at 21:48):

Okay, now I'm dancing: 3 U8s + 4 U64s triggers passing by pointer!

๐Ÿฆ… happy: {bar: 22, baz: 33, fluff1: 0, fluff2: 0, fluff3: 0, fluff4: 0, foo: 11}
๐Ÿฆ€ sad: ZeroedStruct { fluff1: 0, fluff2: 0, fluff3: 0, fluff4: 0, bar: 22, baz: 33, foo: 11 }

view this post on Zulip jan kili (Dec 13 2024 at 21:49):

THANK YOU ALL

view this post on Zulip jan kili (Dec 13 2024 at 21:51):

Hmm, now how to apply this logic to tag unions, which currently generate two-field structs (payload+discriminant)...

view this post on Zulip jan kili (Dec 13 2024 at 21:52):

I'll try fluffing every tag payload

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 21:53):

Yeah, I'm hoping with the ROAR stuff we've been discussing, that would clean all the C ABI issues up.

they are kinda unrelated

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 21:53):

ROAR is for the dev backend

view this post on Zulip Brendan Hansknecht (Dec 13 2024 at 21:53):

llvm backend is failing to follow c abi in these cases

view this post on Zulip jan kili (Dec 13 2024 at 22:00):

JanCVanB said:

LET'S

GOOOOOOOOOOOOOOOOOO

๐Ÿฆ…๐Ÿ˜ถ main is sending custom MIDI: {format: SingleTrack, timing: (Metrical 100 0 0 0 0)}
๐Ÿฆ€๐Ÿ˜ถ roc_fx_echoMidiSmallish received custom MIDI: Header { timing: Timing::Metrical(Timing_Metrical { f1: 0, f2: 0, f3: 0, f4: 0, f0: 100 }), format: Format::SingleTrack }
๐Ÿฆ€๐Ÿ˜Š roc_fx_echoMidiSmallish casted that to Midly: Header { format: SingleTrack, timing: Metrical(u15(100)) }
๐Ÿฆ€๐Ÿ˜Š roc_fx_echoMidiSmallish casted that back too: Header { timing: Timing::Metrical(Timing_Metrical { f1: 0, f2: 0, f3: 0, f4: 0, f0: 100 }), format: Format::SingleTrack }
๐Ÿฆ…๐Ÿ˜ถ main received an echo back: {format: SingleTrack, timing: (Metrical 100 0 0 0 0)}
๐Ÿฆ…๐Ÿ˜Š main sees no difference!

view this post on Zulip jan kili (Dec 13 2024 at 22:05):


view this post on Zulip jan kili (Dec 13 2024 at 22:11):

You've heard of whitespace - now introducing whxtxspxcx:

# This is to help avoid hitting a known C ABI bug
# by ensuring small values are passed by pointer.
# See https://roc.zulipchat.com/#narrow/channel/463736-bugs/topic/Struct.20memory.20partially.20zeroed.20between.20Roc.20and.20Rust/near/488928494
Fluff : U64
X : Fluff

FpsTiming : [Fps24 X X X X, Fps25 X X X X, Fps29 X X X X, Fps30 X X X X]
Format : [SingleTrack X X X X, Parallel X X X X, Sequential X X X X]
Timing : [Metrical U16 X X X X, Timecode FpsTiming U8 X X X X]

Header : {
    format : Format,
    timing : Timing,
}

view this post on Zulip Notification Bot (Dec 13 2024 at 22:12):

JanCVanB has marked this topic as resolved.
