Stream: beginners

Topic: Finding a crash


view this post on Zulip Luke Boswell (Nov 28 2022 at 10:47):

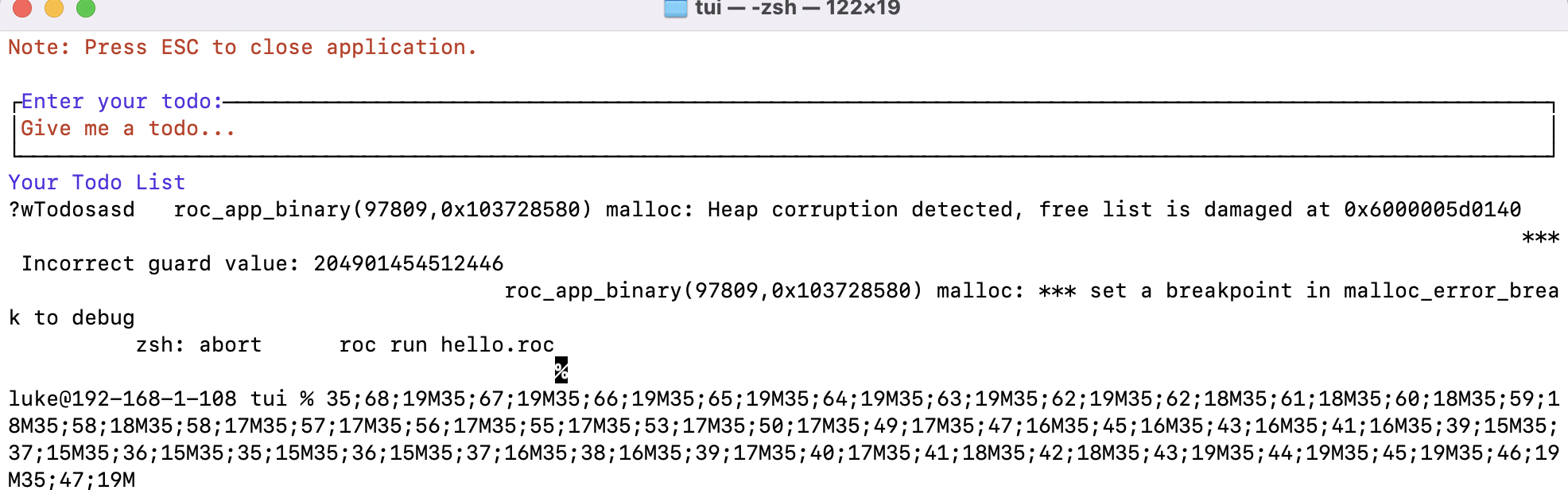

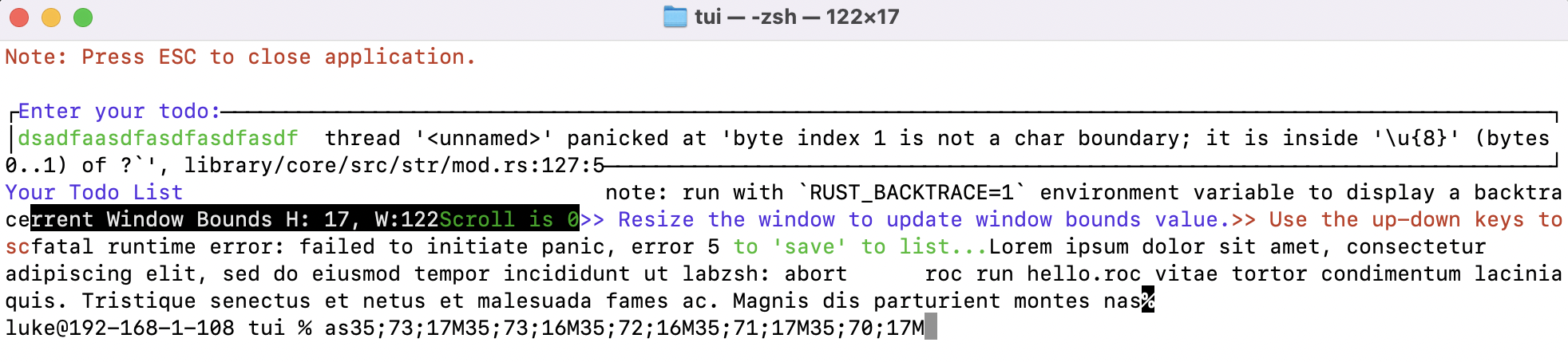

I'm trying to isolate a bug that is causing the roc app to crash using my experimental tui platform. It's tricky to isolate the bug as I haven't found a good way to capture information when Roc panics. Is there are good way to capture the information or debug something like this? I guess it may be complicated by the fact I am capturing stdout to render the terminal ui. I feel like a debugger would assist, but I'm not sure that will work when I am also rendering text to the terminal.

Any assistance here would be most appreciated. I'm really close to having a working Todo app using Roc tui!

Model : {
    text : Str,
    todos : List Str,
    scroll : U16,
    bounds : { height : U16, width : U16 },
}
# Handle events from the platform
update : Model, Event -> Model
update = \model, event ->
    #newTodos = List.append model.todos model.text
    when event is
        KeyPressed code ->
            when code is
                Scalar char -> { model & text: Str.concat model.text char } # adding too many characters in the model's text also crashes
                Delete | Backspace -> { model & text: removeLastCharacter model.text }
                Left -> Model.updateScroll model Left
                Right -> Model.updateScroll model Right
                Up -> Model.updateScroll model Up
                Down -> Model.updateScroll model Down
                Enter ->
                    { model & text: "", todos : ["newTodos", "asd"] } # appending anything to todos crashes
                _ -> model

        Resize newBounds ->
            { model & bounds: newBounds }

        _ ->
            model


view this post on Zulip Folkert de Vries (Nov 28 2022 at 10:49):

can you try the RUST_BACKTRACE=1 suggestion

view this post on Zulip Folkert de Vries (Nov 28 2022 at 10:49):

that should give a better stacktrace for the first panic

view this post on Zulip Folkert de Vries (Nov 28 2022 at 10:50):

most likely some invalid string makes it into the rust code

view this post on Zulip Folkert de Vries (Nov 28 2022 at 10:50):

but it's useful to know where it comes from

view this post on Zulip Folkert de Vries (Nov 28 2022 at 10:51):

the second one is trickier, certainly on mac

view this post on Zulip Folkert de Vries (Nov 28 2022 at 10:51):

but they might be the same issue in reality

view this post on Zulip Folkert de Vries (Nov 28 2022 at 10:51):

otherwise I can try it on linux if you have a branch (and this is supposed to work on linux)

view this post on Zulip Luke Boswell (Nov 28 2022 at 10:59):

It should work ok linux :grinning_face_with_smiling_eyes: I should definitely try that next time. RUST_BACKTRACE didn't give me much. It's just a segfault now. My current logic is that I ha e changed the Model without completely regenerating glue, and because my workaround for glue has the Model in the plaftorm API that may have changed the memory layout. I'll try regenerating it again tomorrow, and I'll have a go with my linux machine. :+1:

view this post on Zulip Folkert de Vries (Nov 28 2022 at 11:03):

on linux, valgrind is a good way to figure out if something is wrong

view this post on Zulip Luke Boswell (Nov 28 2022 at 11:04):

It's on the tui branch. I will likely follow basic-cli's example and pull out into its own repo soon.

view this post on Zulip Luke Boswell (Nov 29 2022 at 20:23):

I think I am getting closer to finding this bug. Can someone more experienced with Rust have a look at the below and let me know if there is anything wrong here? Rust analyzer is happy, but I think there must be something going on in the KeyCodes I'm getting from crossterm and then translating to RocStr's.

crossterm::event::KeyCode::Char(ch) => {
            let string = String::from(ch);
            let roc_string = roc_std::RocStr::from(&string[..]);
            crate::glue::KeyCode::Scalar(roc_string)
        }
Scalar char -> { model & text: Str.concat model.text char } # if I remove the Str.concat then this works properly

view this post on Zulip Luke Boswell (Nov 29 2022 at 20:30):

It's strange behaviour, because it works well for 23 characters, and then crashes on the 24th. Without the Str.concat in the model you can type characters in indefinitely. The other thing I was thinking is that maybe the text RocStr in the Model is only a fixed size and doesn't expand to fit enough characters in it.

view this post on Zulip Folkert de Vries (Nov 29 2022 at 20:59):

that makes sense in a way: we store strings from 24 characters and up in a different way

view this post on Zulip Luke Boswell (Nov 29 2022 at 22:38):

Cool, I'll dig into glue a bit more and see if I can figure it out.

view this post on Zulip Brendan Hansknecht (Nov 29 2022 at 23:16):

I pulled your branch and am trying to take a look, but immediately, I hit a crash when trying to compile. Do you see this on your system?

cargo run -- examples/tui/hello.roc
    Finished dev [unoptimized + debuginfo] target(s) in 0.49s
     Running `target/debug/roc examples/tui/hello.roc`
thread '<unnamed>' panicked at '`pf.Elem.IdentId(109)` is inserted as a partial proc twice: that's a bug!', crates/compiler/mono/src/ir.rs:197:9
note: run with `RUST_BACKTRACE=1` environment variable to display a backtrace

view this post on Zulip Brendan Hansknecht (Nov 30 2022 at 00:20):

Update: no idea why the compiler is panicking here. I just commented out the debug asserts and it compiles fine :shrug: (guess I could have just built in release mode)

As for the crash. It is a use after free bug.

view this post on Zulip Brendan Hansknecht (Nov 30 2022 at 00:20):

The text is being freed and then rendered.

view this post on Zulip Brendan Hansknecht (Nov 30 2022 at 00:22):

This is probably something that glue generation should more properly fix, before render, you want to increment the refcount of the entire Model. Currently the Model is passed into render and essentially consumed. Thus, the next time it is used, the string is pointing to freed memory and hits bugs quickly.

view this post on Zulip Brendan Hansknecht (Nov 30 2022 at 00:23):

With current roc, I think there are two simple fixes.

  1. Change render to also return the model. That way the model's fields will not be freed.
  2. Manually increment the refcounts before calling render with:
unsafe {
    std::mem::forget((*model).text.clone());
    std::mem::forget((*model).todos.clone());
};

view this post on Zulip Brendan Hansknecht (Nov 30 2022 at 00:23):

This is a essentially no-op that just increments the refcount and should otherwise have no major cost.

view this post on Zulip Brendan Hansknecht (Nov 30 2022 at 00:33):

Oh, I guess the third option would be to expose a function that given a model returns the model twice in a record. That would increment the refcount of all fields when called. Then just std::mem::forget one of the models and keep the other.

view this post on Zulip Richard Feldman (Nov 30 2022 at 00:50):

I think changing render to return the model is the way to go, because it means morphic can optimize away unnecessary refcounts better

view this post on Zulip Richard Feldman (Nov 30 2022 at 00:51):

but importantly, I don't think you want to change the user-facing API at all

view this post on Zulip Richard Feldman (Nov 30 2022 at 00:52):

just have an internal-only wrapper around render which calls the application-provided render, and then returns to the host a record containing both what was rendered as well as the original (unchanged) model it was given

view this post on Zulip Richard Feldman (Nov 30 2022 at 00:53):

that way it shouldn't try to decrement the refcount!

view this post on Zulip Brendan Hansknecht (Nov 30 2022 at 01:34):

I don't think that would change anything. Both cases when passing the model into the render function, we are holding a reference which means we will increment the refcount of everything it contains. I don't think morphic would have any wins here. Am I missing something it can do?

view this post on Zulip Luke Boswell (Nov 30 2022 at 02:15):

Thank you for looking into this. I really appreciate it. I've got some things to work on now. For reference I should have mentioned that I've moved into a new repo roc tui, but its still the same issue on that branch.
